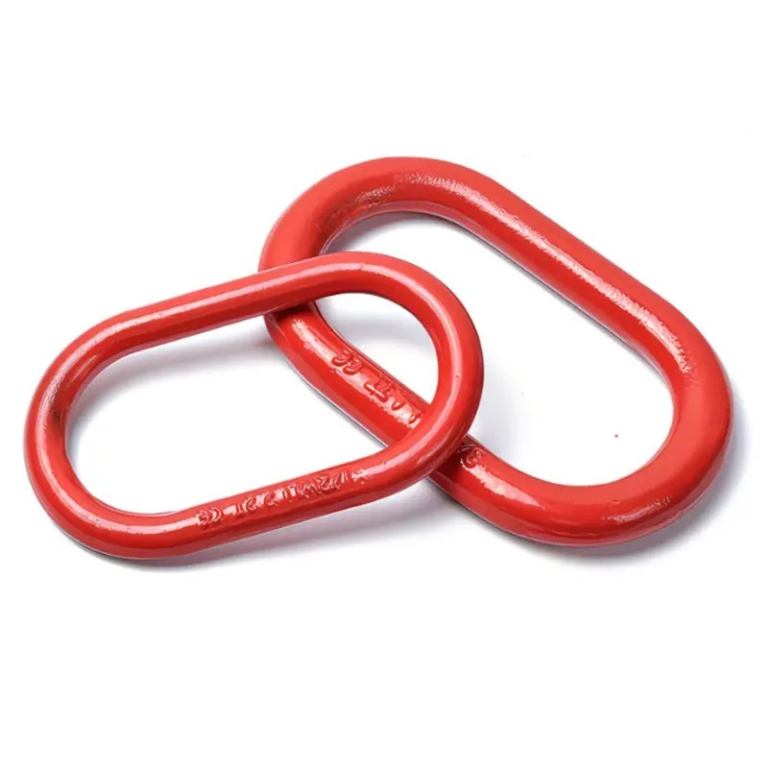

| SIZE/in | WLL/T | A mm |
B mm |
D mm |
| 1/2″ | 2 | 127 | 63.5 | 14 |
| 5/8″ | 3 | 152 | 76 | 16 |
| 3/4″ | 4.7 | 140 | 70 | 20 |
| 7/8″ | 6.4 | 160 | 90 | 22 |
| 7/8″ | 8 | 178 | 89 | 22 |
| 1″ | 11 | 178 | 89 | 25 |
| 1-1/4″ | 16 | 220 | 110 | 32 |
| 1-1/2″ | 21.7 | 270 | 140 | 38 |
| 1-3/4″ | 28.4 | 305 | 152 | 45 |
| 2″ | 30/35 | 350 | 190 | 50 |
| 2-1/4″ | 45 | 400 | 200 | 56 |
| 2-1/2″ | 50 | 406 | 203 | 63 |
| 2-3/4″ | 60 | 450 | 250 | 70 |
| 2-4/5″ | 70 | 460 | 250 | 72 |
| 3-1/4″ | 80 | 480 | 252 | 80 |
| 3-1/3″ | 100 | 480 | 252 | 85 |
| 3-3/5″ | 120 | 480 | 252 | 90 |
| 3-3/4″ | 150 | 510 | 260 | 95 |
| 4″ | 160 | 510 | 260 | 102 |
