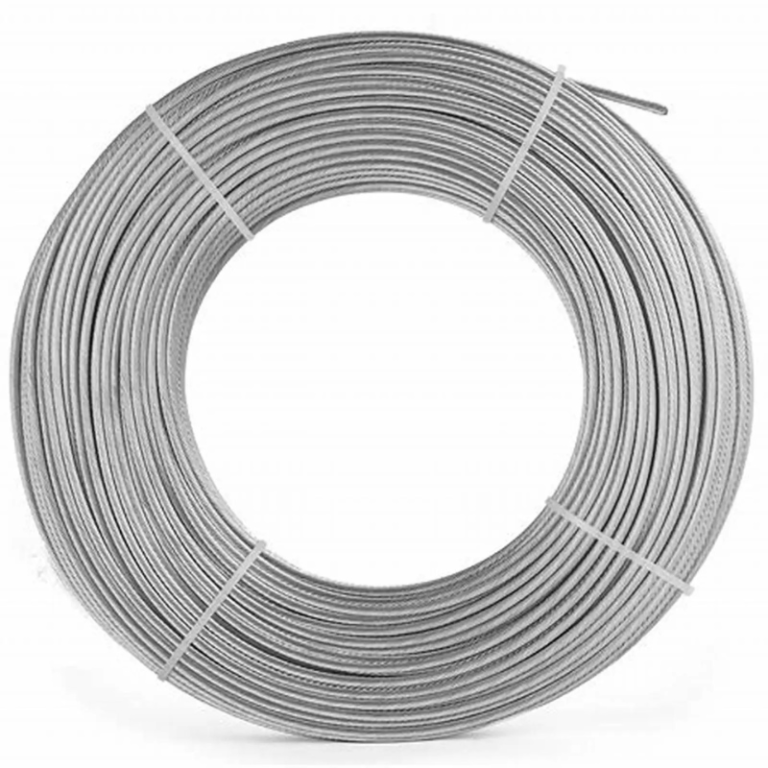

CONSTRUCTION COMPACTED STRAND |
||||
|
7X19 |
||||
| Diameter (mm) | Approx. Weight (Kg) | Approx. Meter (M/kg) | Min. Breaking Load (Kn) | Package (M/Reel) |
| 1.00 | 0.38 | 263.15 | 0.51 | 5000.00 |
| 1.50 | 0.85 | 117.65 | 1.17 | 2500.00 |
| 2.00 | 1.52 | 65.79 | 2.08 | 2000.00 |
| 2.50 | 2.38 | 42.02 | 3.25 | 1000.00 |
| 3.00 | 3.42 | 29.24 | 4.69 | 1000.00 |
| 4.00 | 3.09 | 16.42 | 8.33 | 1000.00 |
| 5.00 | 9.52 | 10.50 | 13.03 | 1000.00 |
| 6.00 | 13.71 | 7.29 | 18.76 | 1000.00 |
| 8.00 | 24.38 | 4.10 | 33.35 | 500.00 |
| 10.00 | 38.10 | 2.62 | 52.12 | 500.00 |
| 12.00 | 54.86 | 1.82 | 75.05 | 500.00 |
| 14.00 | 74.67 | 1.34 | 102.16 | 500.00 |
| 16.00 | 97.53 | 1.03 | 133.43 | 500.00 |
| 18.00 | 123.44 | 0.81 | 168.88 | 500.00 |
| 20.00 | 152.40 | 0.66 | 208.49 | 500.00 |
| 24.00 | 219.40 | 0.46 | 300.23 | 500.00 |
| 26.00 | 273.70 | 0.37 | 352.25 | 500.00 |
